Archery Paper Tuning System | Handcrafted Bow Tuner + Guide

Get Your Bow Shooting Straight—Without Guesswork

A simple, repeatable system to diagnose arrow flight and make the right adjustments.

No expensive tools. No trial and error. Just a clear system you can use at home or at the range.

Portable. Stable. Built to Mount.

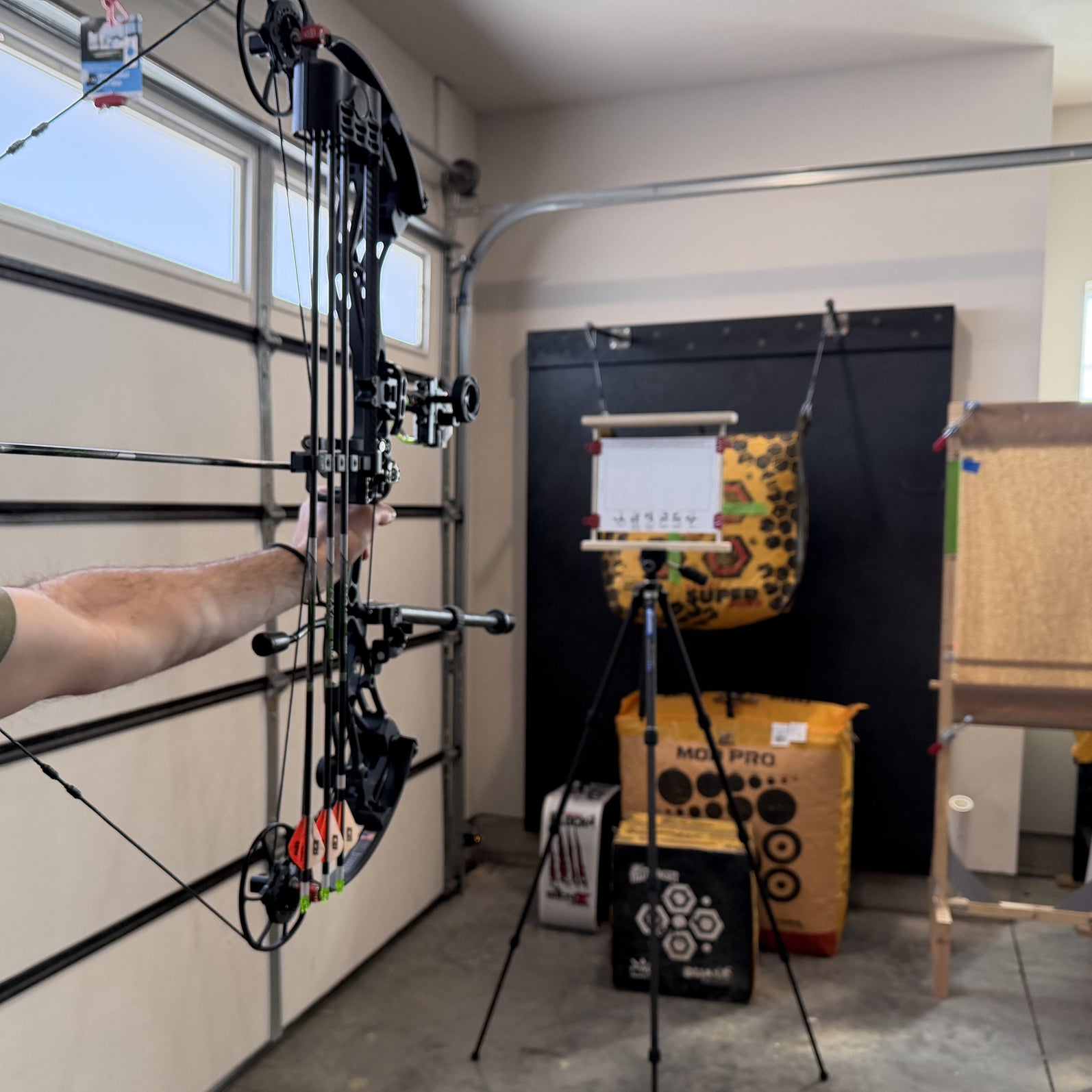

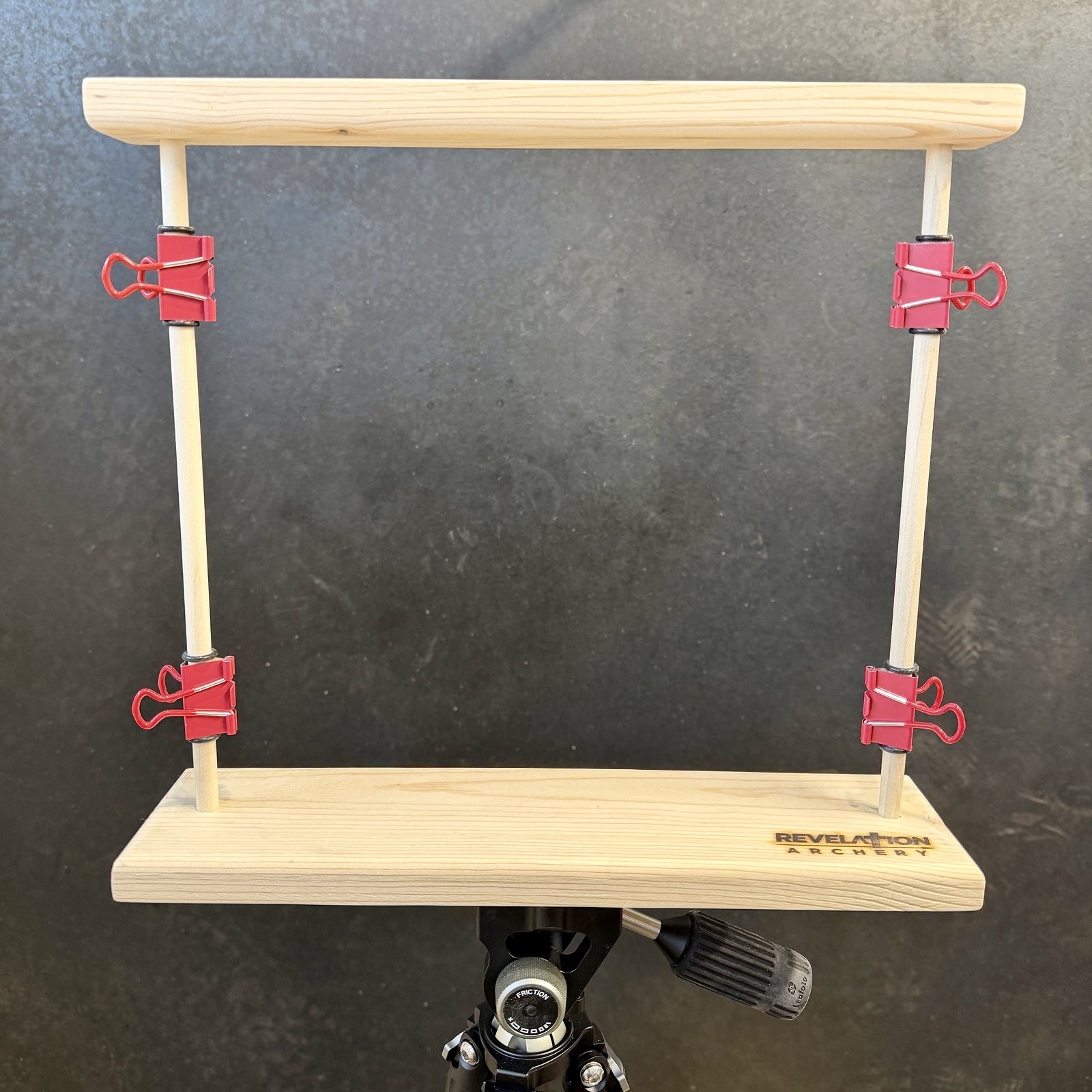

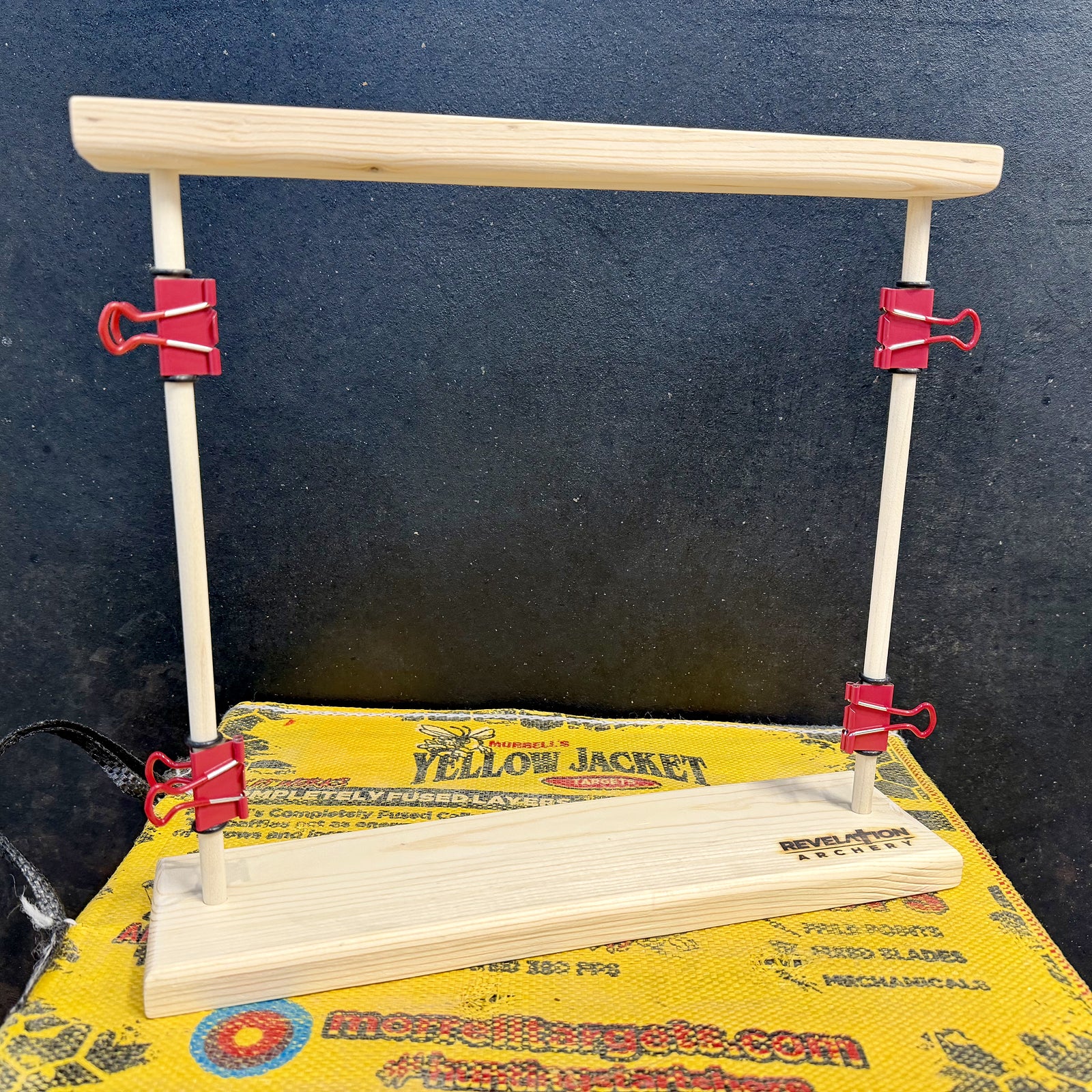

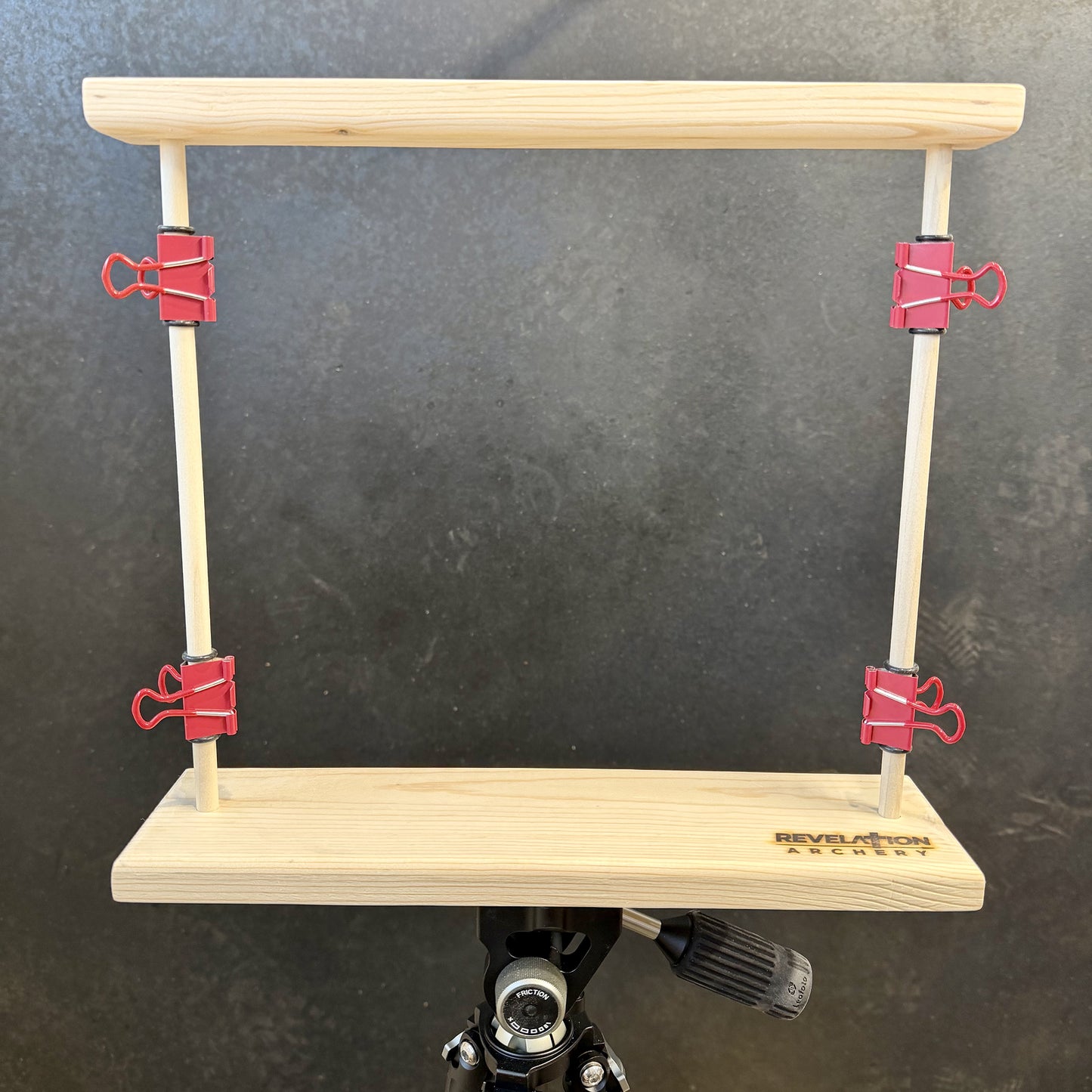

Use it on a flat surface or mount it to a tripod for added stability.

Includes a 1/4-20 threaded insert for secure mounting.

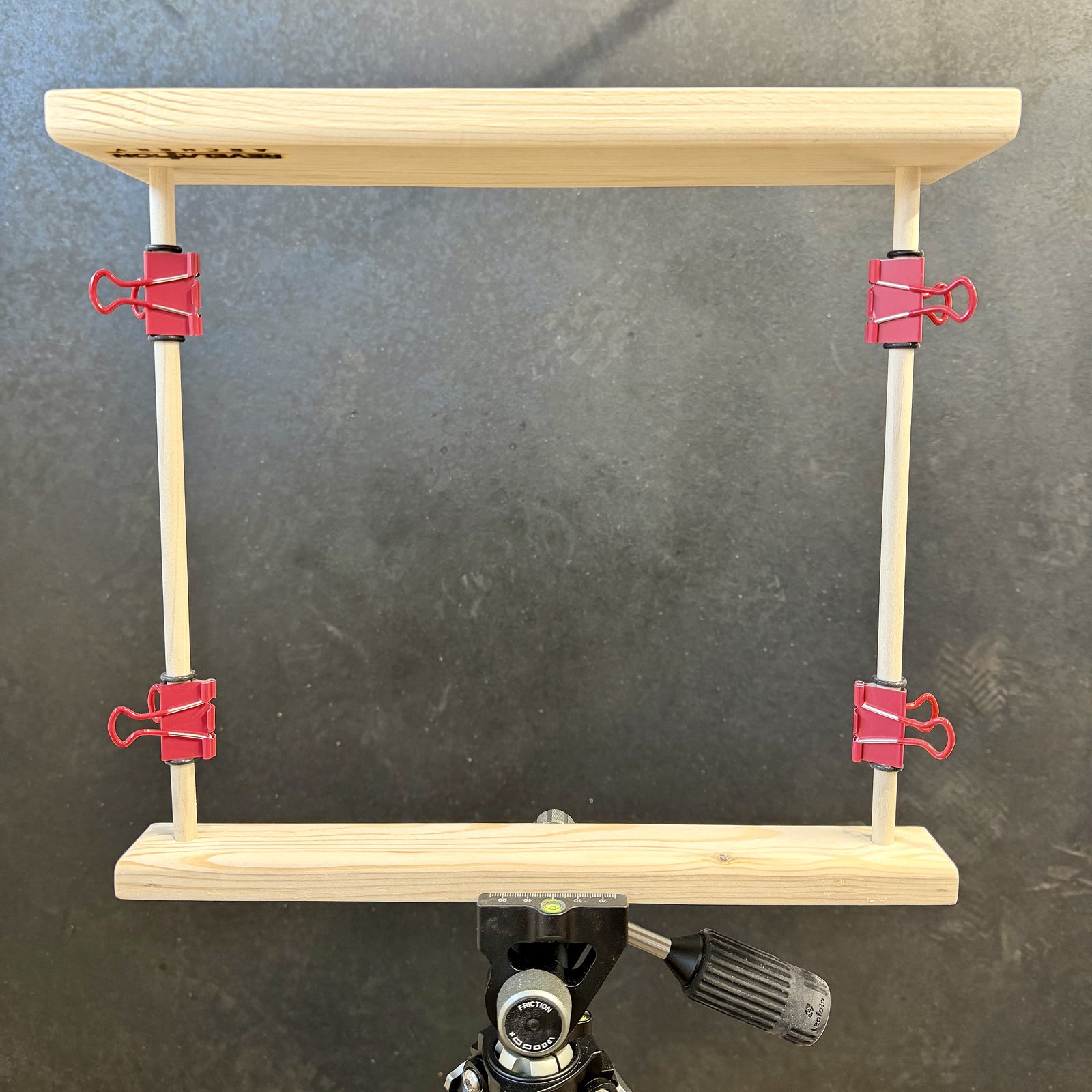

Top rail fits standard Arca-Swiss clamps, allowing direct attachment without a plate.

Set it up in minutes, tune your bow, and store it when you’re done.

Built for Real Use

• Uses standard 8.5" x 11" paper you can print at home
• Large rubber-coated clips for a secure hold
• Handcrafted wood frame with thicker components for stability

Everything is designed to keep setup simple and results consistent.

No Refills Needed

Uses standard printer paper—no specialty sheets or ongoing cost.

Consistent, Repeatable Results

A stable setup matters.

This frame holds paper securely and provides clear, consistent feedback shot-to-shot.

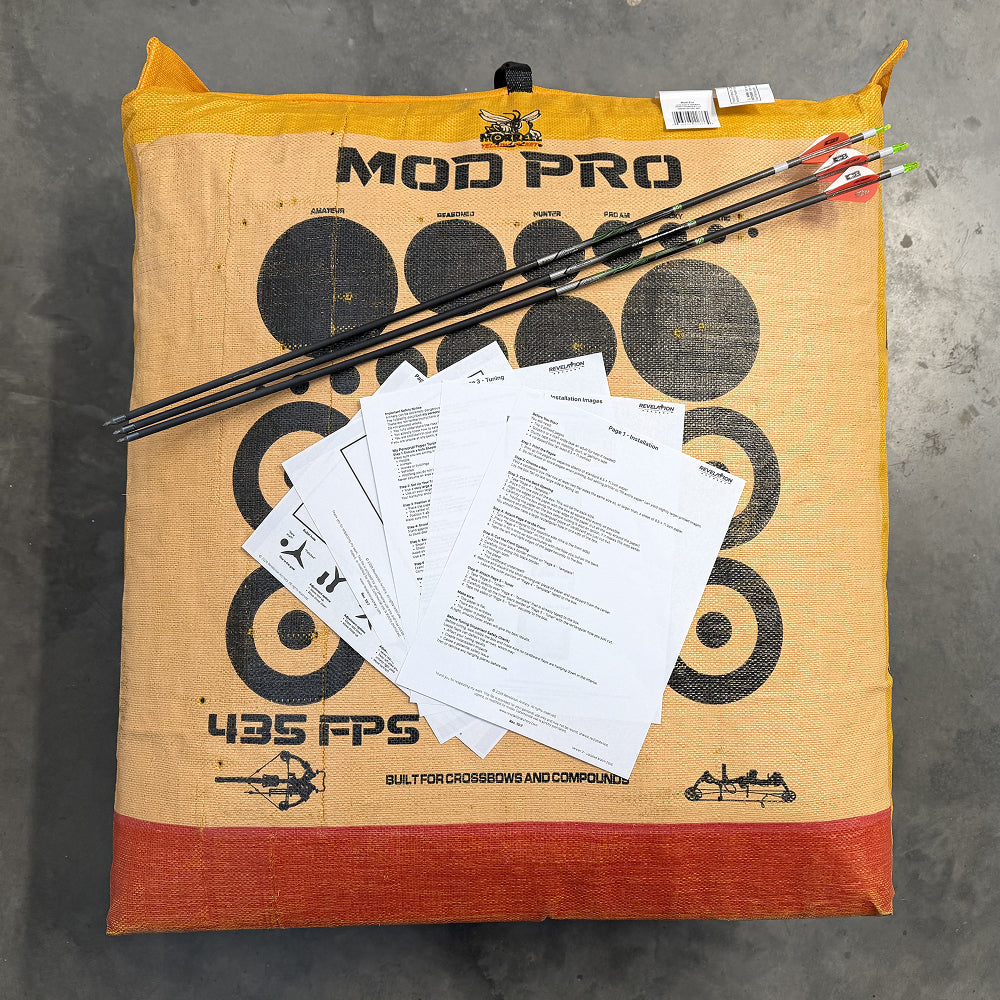

What’s Included

• Handcrafted wood tuning frame
• 10 printed tuning sheets with diagnostic chart
• Printed tuning guide
• Assembly instructions
• Downloadable replacement sheets

Note: Clip color may vary (red or black).

How It Works

Shoot through paper and read the tear.

A clean “bullet hole” tear means your arrow is leaving the bow straight and true.
Directional tears show what adjustments to make.

Handcrafted Quality

Handcrafted in the USA by Revelation Archery.

Built in small batches. Natural variations in the wood are part of the process.

Quick Setup

Simple press-fit assembly with light hammer taps. Ready in minutes.

What You’ll Need

• Compound bow and arrows
• Safe shooting direction
• Target and proper backstop
• Basic tools

Mounting & Care

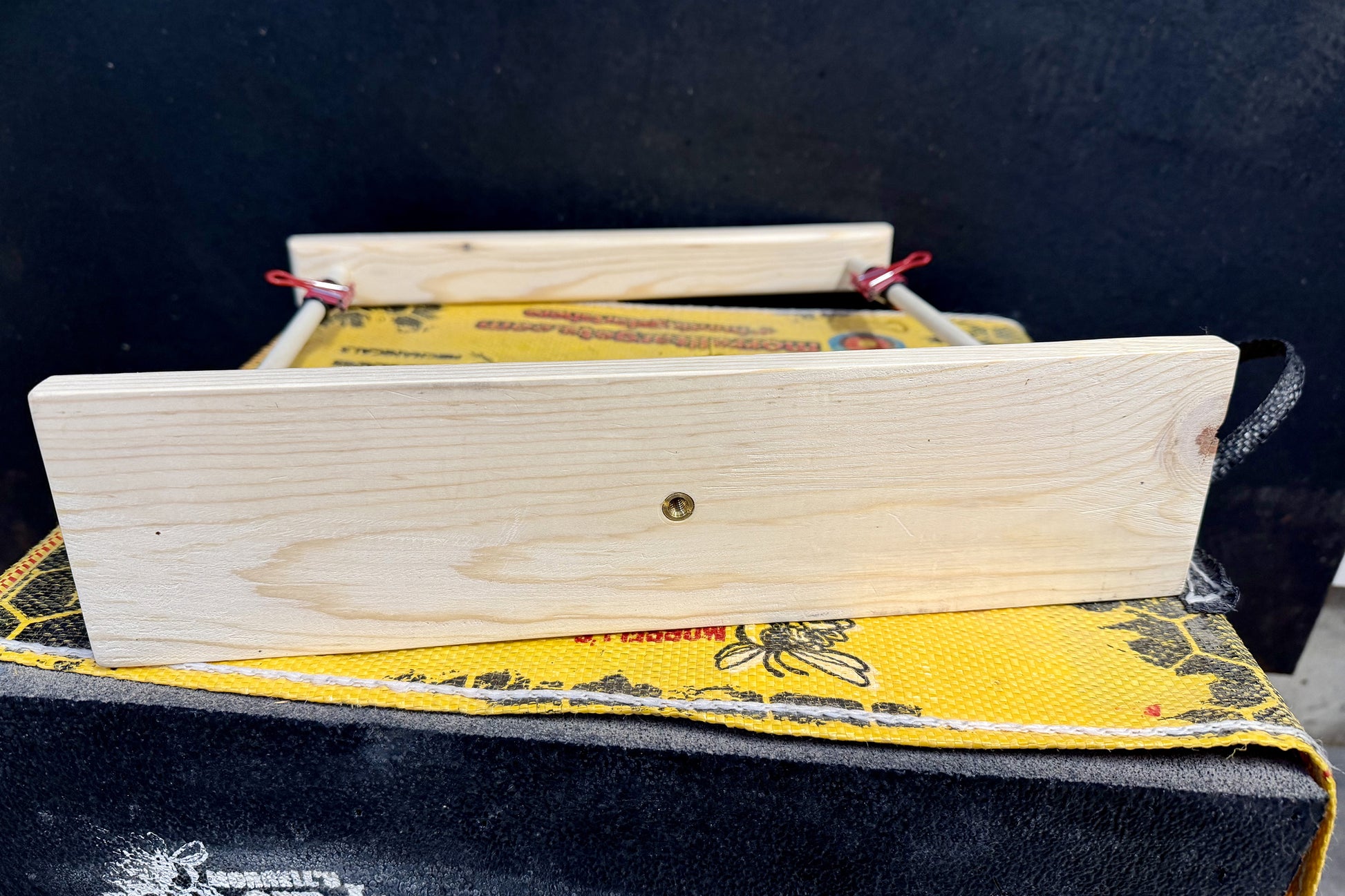

Includes a brass threaded insert for tripod mounting.

• Start threading by hand to avoid cross-threading
• Do not force
• Tighten only until snug — overtightening can damage the insert

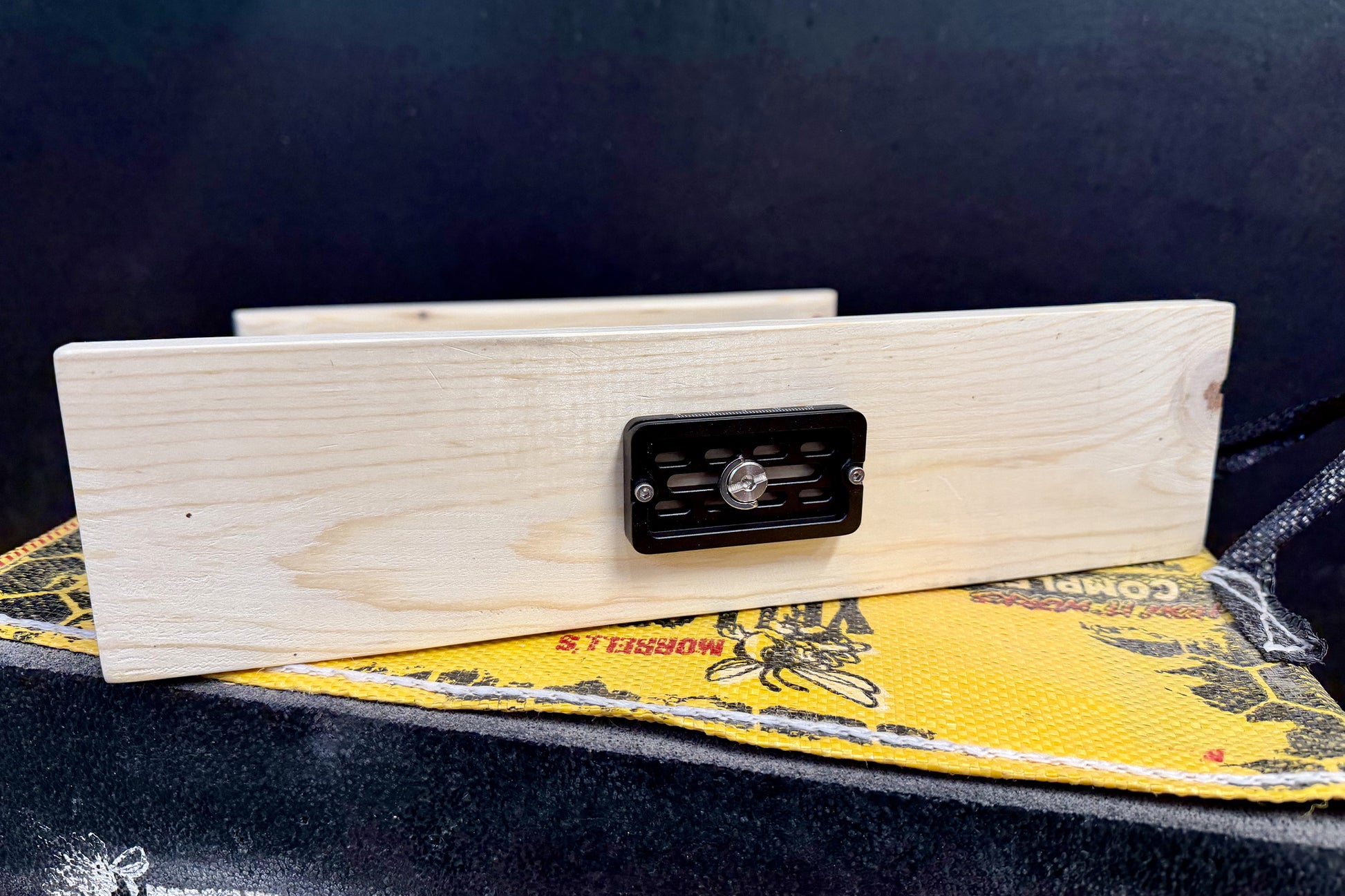

Note: Arca-Swiss plate shown for demonstration purposes only. Plate not included.

Important Safety Notice

Archery can be dangerous. Always follow proper safety precautions.

The included guide describes Revelation Archery’s paper tuning process and is provided for informational purposes only. It assumes you already know how to safely handle and shoot a bow.

Always ensure you have:

• a safe shooting direction
• proper archery targets
• an adequate backstop

If you are unsure at any point, stop and consult a qualified archery professional.
